FleetBroadband


FleetBroadband gives you faster, more cost-effective access to data services. Besides constant, real-time weather and ECDIS updates, you can use more complex applications with confidence. Its simultaneous voice and data capability means that operational systems can be running online and you can still access email, your intranet and make voice calls – all via a single terminal. So the Captain can get on with managing the ship, while the crew are calling or emailing home.

FleetBroadband ensures you are never out of touch, wherever you sail. The service is accessible globally except for the extreme Polar Regions. You can depend on Inmarsat, whatever the weather. We provide the toughest communications links in the business, with average network availability exceeding 99.99 per cent. FleetBroadband terminals are designed specifically for use within the marine environment and are rigorously tested to our exacting standards. The whole system is supported by our worldwide network of partners.

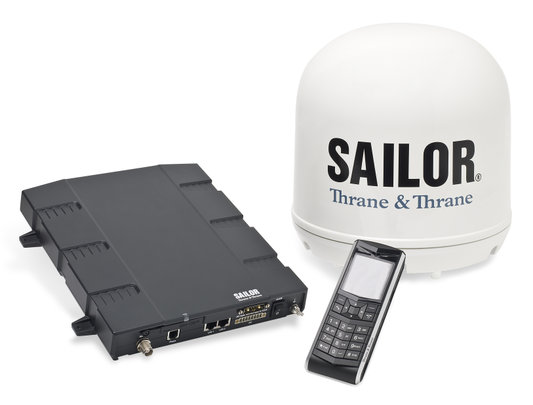

fleet-broadband.jpg fbb-mid.jpg
FleetBroadBand Hardware FleetBroadband Airtime





Coverage




Terminals
Three types of terminal are available, with different performance capabilities and size depending on your requirements.

FB150
FB150 is our new entry-level service, specifically designed for small to medium-sized vessels. It offers standard IP up to 150kbps. Antenna is 29.1cm in diameter.

FB250
Offers Standard IP up to 284kbps and Streaming IP up to 128kbps. Antenna is 32cm in diameter.

FB500
Offers Standard IP up to 432kbps and Streaming IP up to 256kbps. Antenna is 60cm in diameter.

All the terminals are designed specifically for the marine environment and also support voice, fax* and SMS.

*Fax is not available on FB150


Feature comparison: Sailor Fleet Broadband 150, 250, and 500

  Sailor 500 Sailor 250 Sailor 150
Standard IP
(Maximum data rate on a shared bandwidth)
Up to 432kbps Up to 284kbps Up to 150kbps
Streaming IP
(Guaranteed minimum data rate on a dedicated line)
32, 64, 128, 256kbps 32, 64, 128kbps N/A
ISDN 64kbps N/A N/A
Voice Standard (4kbps) Premium (3.1kHz Audio) Standard (4kbps) Premium (3.1kHz Audio) Standard (4kbps)
Fax Group 3 fax via 3.1kHz Audio Group 3 fax via 3.1kHz Audio N/A
SMS up to 160 characters up to 160 characters up to 160 characters
Ethernet Port/POE 4 4 1
Quick Start FB500 FB250 FB150

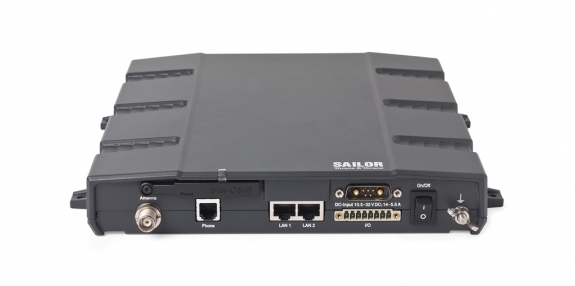

Sailor 150 BDU

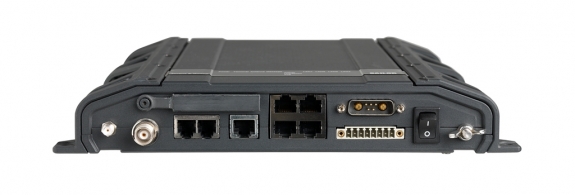

Sailor 250/500 BDU


Downloads

FleetBroadband Overview

FleetBroadband Fact Sheet

FleetBroadband Spot Beam Coverage
